Step-lap CRGO Transformer Laminations

Step-lap CRGO Transformer Laminations

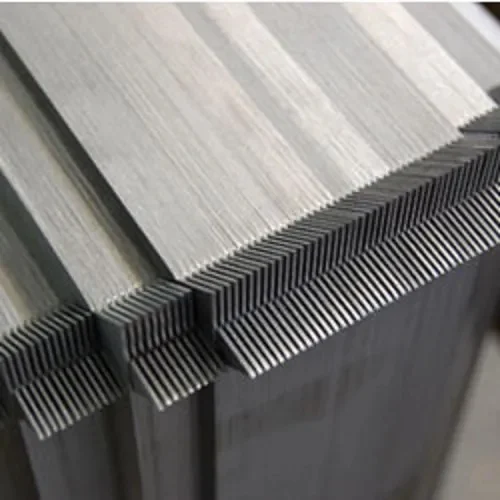

Step-lap CRGO Transformer Laminations are engineered to enhance transformer performance by minimizing core losses and improving magnetic efficiency. Designed with overlapping lamination edges, the step-lap construction ensures smoother flux flow, reduced noise, and lower excitation current compared to conventional butt-lap joints. Manufactured from premium CRGO steel with precision cutting and alignment, these laminations offer superior energy efficiency, better heat dissipation, and long-term operational reliability. Ideal for both power and distribution transformers, step-lap laminations help optimize transformer durability, performance, and power consumption.

infrastructure

Features

Step-lap CRGO laminations are designed to improve transformer efficiency by ensuring smooth magnetic flux flow and reduced core losses. Their precision-aligned step-lap joint structure offers quieter operation, lower power consumption, and enhanced durability, making them ideal for high-performance transformers.

  • Reduced Core Loss
  • Low Noise & Vibration
  • Improved Magnetic Flux Flow
  • Lower Excitation Current
  • Enhanced Energy Efficiency
infrastructure

Types of Step-Lap

01 How many types of step-lap laminations are commonly used?

Generally, 3, 5, and 7-step lap designs are widely used, depending on the transformer size, efficiency requirements, and core design.

02 What is the difference between a 3-step, 5-step, and 7-step lap?

A 3-step lap offers basic performance improvement, a 5-step lap provides better flux distribution, while a 7-step lap delivers the highest efficiency, lowest noise, and minimum core loss.

Product Range

product1
CRGO Steel Cutting
product2
Transformer Core Assembly
product3
Core Lamination Cutting
product4
Customized Core Design
